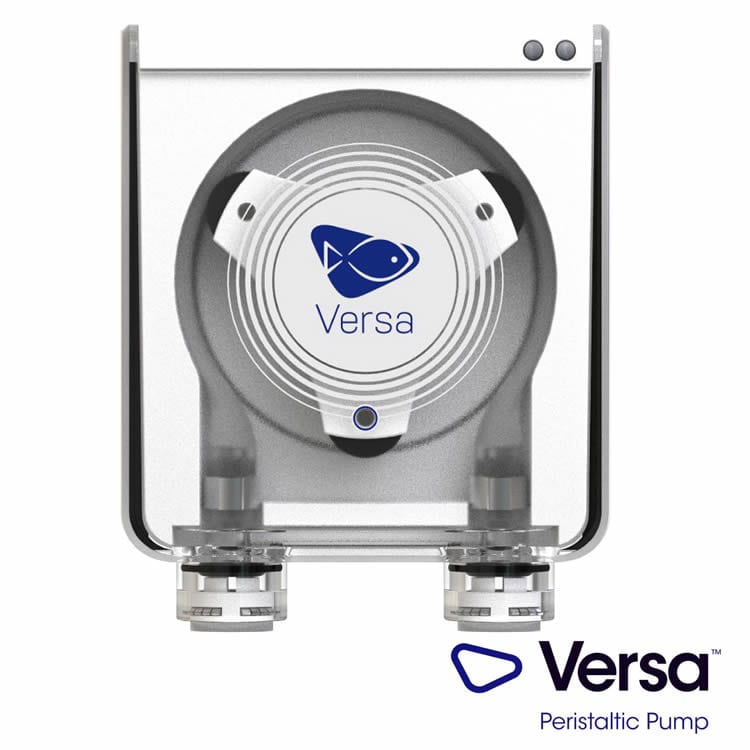

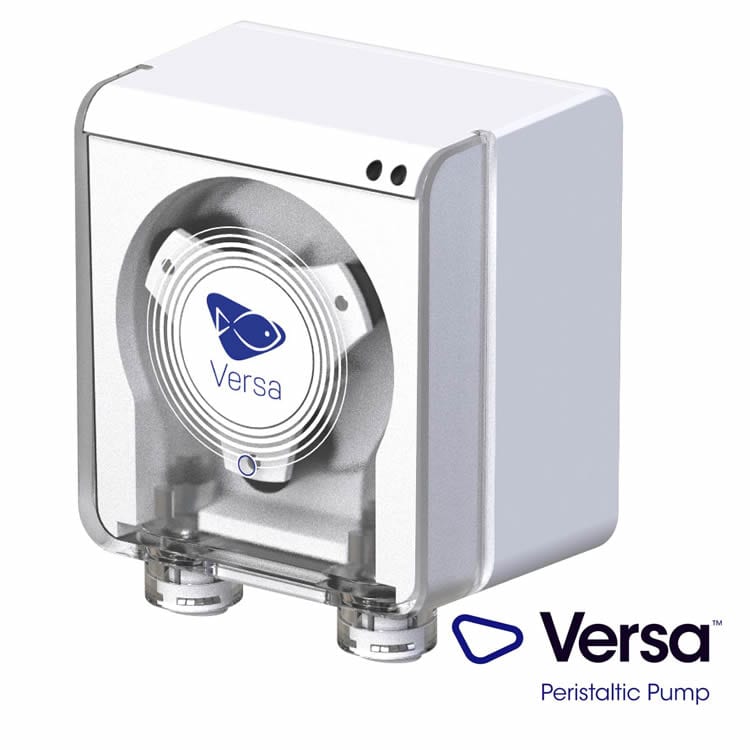

Ecotech Versa VX-1 Single Doser

The Ecotech Versa VX-1 Pump is a specially designed aquarium peristaltic pump from EcoTech Marine. Much more than a traditional “dosing” pump, the Versa is extremely precise, robust, and versatile. The Versa excels in many precision aquarium pump applications, including; dosing, auto top off (ATO), automated water changes, and reactor feeding. Pump drive incorporates a DC stepper motor with a planetary gearing mechanism. Intelligent control and BLE connectivity deliver super easy and lightning-fast calibration and programming. The experienced hobbyist will immediately understand what makes the Versa a clear choice as a precision aquarium pump. Those new to this equipment will enjoy the simplicity of Mobius control and smart device wireless connectivity. The Versa can be purchased as a single pump or as a four-pack that includes a consolidated power rail base station. Individual pumps can be added to a base station if purchased separately.

• Length: 3.15″ (80mm)
• Width: 2.34″ (59.4mm)
• Height: 4.2″ (106.9mm)

• Power Consumption: 12w
• Universal Input Range: 100-240VAC, 50/60Hz
• Peak Inrush Current: 1.3A

• MIN: 0.5ul a minute
• MAX: 300ml a minute

• Quickstart Guide
• Versa Pump
• Power Supply
• Barbed Tube Connectors – For use with: 3/16″ (4mm) ID softwall tubing

Auto Mode Auto mode schedules dosing specific to what additive or solution is being dosed. This mode utilizes standard dosing practices and known water parameter changes in a reef tank based on light cycle and biological activity. The Versa™ does not determine dosing volume, that requires testing and tuning. It will however, schedule dosing based on the salt or additive selected.

Continuous Mode Continuous mode sets a dosing rate (volume/min) that runs when the pump is powered. Continuous mode is an always-operating dosing mode and needs to be controlled by external means (controller, timer, float switch, etc…)

Manual Mode Manual Mode allows the user to create a program specifying dosing volumes and or durations. The Versas variable operational capability allows volume dosing to be carried out a specified rate or over a specified time period. Up to 30 discrete dosing events can be created per pump in a 24hr period. The Catch-Up feature allows the Versa™ to correct a dosing difference if the pump is shut down or is interrupted during its daily program. Safe-guards help protects against some potential dosing issues.
